Liv Faith

No Image Available
This item is currently not available.

Details

DREAM BIG

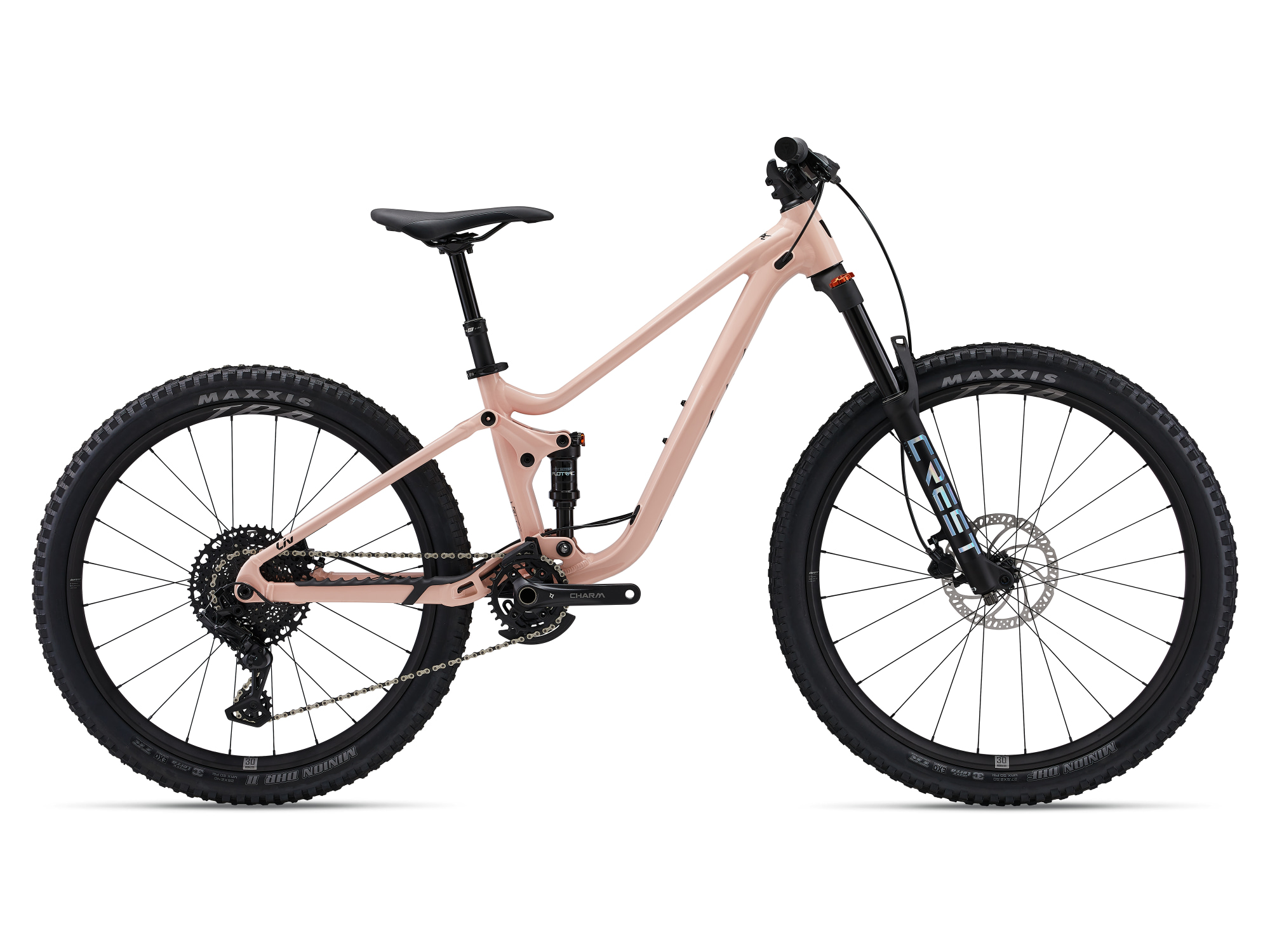

Built to meet the demands of young shredders, the Liv Faith provides a performance full suspension platform to fuel limitless possibilities.

KEY PERFORMANCE FACTORS
YOUTH-TUNED SUSPENSION
The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.

AGILE AND EFFICIENT
An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.

OFF-ROAD CONTROL
With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.

Front Wheel: 27.5-inch
Rear Whell: 26-inch

Sizes:
FRAME SIZEONE SIZE
SEAT TUBE LENGTH (mm)350
SEAT TUBE ANGLE77.0°
TOP TUBE LENGTH (mm)545
HEAD TUBE LENGTH (mm)105
HEAD TUBE ANGLE64.5°
FORK RAKE (mm)41
TRAIL (mm)126.5
WHEELBASE (mm)1147.5
CHAIN STAY LENGTH (mm)425
BOTTOM BRACKET DROP (mm)10
STACK (mm)584.5
REACH (mm)410.1
STAND OVER HEIGHT (mm)676
HANDLEBAR WIDTH (mm)740
STEM LENGTH (mm)40
CRANK LENGTH (mm)155
FRONT WHEEL27.5-inch
REAR WHEEL26-inch

Specs

Pedals Giant Pinner Comp Lite Pedal
Fork Crest SL 34, 140mm, FloTune damper, lite tuning, 27.5" specific
Hubs Front: Giant MTB alloy, 6-bolt, sealed
Rear: Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed
Rims Giant TRA WheelSystem, 6069 alloy, welded, 30mm IW, 40mm OW, 21mm H, Wide Guard technology, [F] 27.5 [R] 26
Stem Giant Contact, 40mm
Chain KMC X10 with Missing Link
Frame ALUXX SL-grade aluminum front and rear triangles, 135mm Flexpoint suspension, rear 26" wheel only
Tires Front: Maxxis Minion DHF 27.5x2.5WT, 3C MaxxTerra, EXO, TR, tubeless, 60 TPI, folding
Rear: Maxxis Minion DHR II 26x2.4, 3C MaxxTerra, EXO, TR, tubeless, 60 TPI, folding
Brakes Tektro HD-J285, hydraulic, [F] 180mm, [R] 160mm
Saddle Giant Romero
Spokes Sapim Laser straight pull, DBL technology
Crankset Prowheel Charm, 30t, 155mm
Seatpost Giant Contact Switch AT Lite, adjustable dropper, remote 70-100mm travel / 30.9 x 315mm
Shifters microSHIFT Advent X Trail M9505-R, 1x10
Handlebars Giant Connect TR, 740x31.8mm, 20mm rise, alloy
Rear Shock Crest FloTrac Lite, 165x45, custom tuned for youth
Tape/Grips Giant Tactal Pro Lite youth lock-on
Brake Levers Tektro HD-J285
Bottom Bracket Prowheel, press-fit
Rear Derailleur microSHIFT Advent X M6205AM
Cassette/Freewheel microSHIFT Advent X G-Series, 11-48T

* Subject to change without notice.
